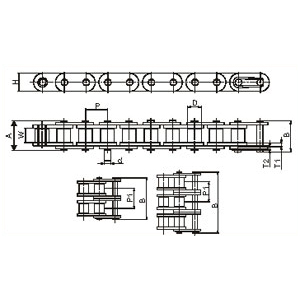

Standard Roller Straight Side Plate Chains - American Series

Intl. Ref. No. Diamond Chain No. Pitch (P) Width Betwwen Inner Plates (W) (Min Roller Dia (D) (Max Bearing Pin Dia (D) (Max) Plate Height (H) (Max Plate Thickness Width Over Bearing Pin (A) (Max) Width Over Joint Fasteners (B) (Max) Transverse Pitch (P1) Tensile Strength (Kgf) (Min) IP T1 OP T2 C40-1 D08A01ST01 12.70 7.85 7.92 3.96 12.00 1.50 1.50 17.80 21.70 14.38 1440 C40-2 D08A02ST01 32.30 38.20 2880 C40-3 D08A03ST01 46.70 50.80 4320 C50-1 D10201ST02 15.875 9.40 10.16 5.08 15.00 2.00 2.00 21.80 25.90 18.11 2270 C50-2 D10202ST02 39.90 44.00 4540 C50-3 D10203ST02 57.90 62.00 6810 C60-1 D12101ST01 19.05 12.58 11.91 5.94 18.00 2.39 2.39 26.90 31.50 22.78 3240 C60-2 D12102ST01 49.70 54.40 6490 C60-3 D12103ST01 72.60 77.20 9730 C80-1 D16101ST01 25.40 15.75 15.88 7.92 24.10 3.15 3.15 33.50 38.90 29.29 5780 C80-2 D16102ST01 62.70 68.10 11560 C80-3 D16103ST01 91.90 97.10 17340 C100-1 D20101ST01 31.75 18.90 19.05 9.53 30.10 4.00 4.00 41.10 47.20 35.76 9030 C100-2 D20102ST01 77.70 83.10 18060 C100-3 D20103ST01 113.00 119.10 27090 C120-1 D24101ST01 38.10 25.22 22.23 11.10 36.20 4.70 4.70 50.80 57.40 45.44 12950 C120-2 D24102ST01 96.30 102.90 25950 C120-3 D24103ST01 141.03 147.60 38850 C160-1 D32101ST01 50.80 31.55 28.58 14.27 47.78 6.30 6.30 65.50 73.40 58.55 23130 C160-2 D32102ST01 124.00 131.90 46250 C160-3 D32103ST01 182.00 189.90 69370

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
