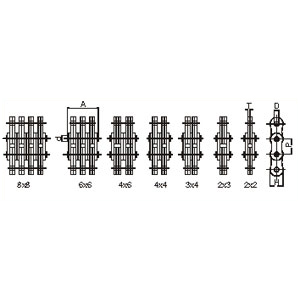

Leaf Diamond Max - Bl Series
Intl.
Ref.
No.
Diamond
MAX
Chain
No.
Lacing
Pattern
Pitch
(P)
Pin
Dia
(D)
(Max)
Plate
Height
(H)
(Max)
Plate
Thickness
(T)
(Max)
Hole
Dia
(D)
(Min)
Width Over
Bearing
Pin
(A)
(Max)
Diamond
MAX
Tensile
Strength
Kgf
(Min)
BL 422 Q - BL 08 22 2 x 2           11.00 2800
BL 423 Q - BL 08 23 2 x 3           13.10 2800
BL 434 Q - BL 08 34 3 x 4           17.40 4200
BL 444 Q - BL 08 44 4 x 4 12.70 5.09 12.07 2.08 5.12 19.50 5700
BL 446 Q - BL 08 46 4 x 6           23.75 5700
BL 466 Q - BL 08 66 6 x 6           27.99 8500
BL 488 Q - BL 08 88 8 x 8           36.40 11400
BL 522 Q - BL 10 22 2 x 2           12.88 4000
BL 523 Q - BL 10 23 2 x 3           15.30 4000
BL 534 Q - BL 10 34 3 x 4           20.30 6100
BL 544 Q - BL 10 44 4 x 4 15.875 5.96 15.09 2.44 5.98 22.70 8100
BL 546 Q - BL 10 46 4 x 6           27.70 8100
BL 566 Q - BL 10 66 6 x 6           32.10 12200
BL 588 Q - BL 10 88 8 x 8           42.50 16300
BL 622 Q - BL 12 22 2 x 2           17.30 7000
BL 623 Q - BL 12 23 2 x 3           20.70 7000
BL 634 Q - BL 12 34 3 x 4           27.40 10500
BL 644 Q - BL 12 44 4 x 4 19.05 7.94 18.10 3.30 7.96 30.70 14000
BL 646 Q - BL 12 46 4 x 6           37.40 14000
BL 666 Q - BL 12 66 6 x 6           44.20 21000
BL 688 Q - BL 12 88 8 x 8           57.60 28000
BL 822 Q - BL 16 22 2 x 2           21.30 11200
BL 823 Q - BL 16 23 2 x 3           25.40 11200
BL 834 Q - BL 16 34 3 x 4           33.70 16800
BL 844 Q - BL 16 44 4 x 4 25.40 9.54 24.10 4.09 9.56 37.90 22400
BL 846 Q - BL 16 46 4 x 6           46.10 22400
BL 866 Q - BL 16 66 6 x 6           54.40 33600
BL 888 Q - BL 16 88 8 x 8           71.00 44800
Note : In process of making the product better the actual product may differ in design From the actual displayed product.
