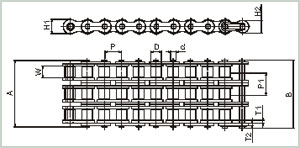

Standard Roller American Heavy Series Chain

Triple Strand

 Intl. Ref No.  Diamond Chain No. Pitch (P)  Width between Inner Plates (W) (Min)  Roller Dia (D) (Max)  Bearing Ring Pin Dia (d) (Max)  Plate Height   Plate Thickness  Width Over  Bearing Pin (A) (Max) Width Over Joint Fasteners(B) (Max)  Transverse Pitch (P1) Tensile Strength (Kgf) (Min)
 IP (H1) (Max) OP (H2) (Max)   IP (T1) OP (T2)
60H-3 D122 03 19.05 12.58 11.91 5.94 18.00 14.88 3.15 3.15 82.20 86.80 26.11 9720
80H-3 D 162 03 25.40 15.75 15.88 7.94 24.10 20.80 4.00 4.00 103.30 108.70 32.59 17340
100H-3 D 202 03 31.75 18.90 19.05 9.54 30.10 26.00 4.70 4.70 123.40 129.50 39.09 27090
120H-3 D 242 03 38.10 25.22 22.23 11.11 36.20 31.20 5.56 5.56 152.40 159.00 48.87 38850
140H-3 D 282 03 44.45 25.22 25.40 12.71 42.20 36.40 6.30 6.30 164.30 171.70 52.20 52740
160H-3 D 322 03 50.80 31.55 28.57 14.29 48.20 41.60 7.14 7.14 193.70 201.60 61.90 69360
200H-3 D 402 03 63.50 37.85 39.67 19.85 60.30 52.00 8.80 8.80 252.60 262.80 78.31 108210
Note : In process of making the product better the actual product may differ in design From the actual displayed product.
