Technical Data


A S FL D L
2.5 M2 10 14 20
3 M2 12 16 24
6.5 M3 14 20 28
8 M4 16 25 32
8 M4 18 32 38

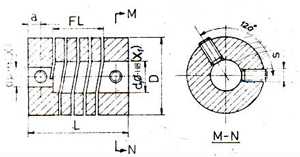

Table (1)


A S A1 S1 D L
5 M2 5 M2 14 21
6 M2 8 M2 16 25
6.5 M3 6.5 M3 20 28
8 M4 8 M4 25 32
8 M4 8 M4 32 38

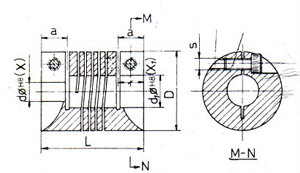

Table (2)

Catalogue of Standard coupling Dimensions :

SR OD ID1 ID2 LENGTH ORDER CODE
01   6  6   AF-20-6-6
02   6  8   AF-20-6-8
03 20 6 8 26 AF-20-8-8
04   6  6.35   AF-20-6-6.35
05   6.35  6.35   AF-20-6.35-6.35

06   6 8   AF-25-6-8
07   6 10   AF-25-6-10
08 25 8 8 32 AF-25-8-8
09   10  10   AF-25-10-10
10   6  9.6   AF-25-6-9.6
11   6  6.35   AF-25-6-6.35

Note : For specific requirement or non-standard sizes, please refer the table 1 & 2 while ordering.

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
