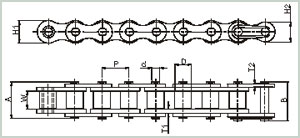

Standard Roller American Heavy Series Chain

Single Strand

 Intl. Ref No.  Diamond Chain No. Pitch (P)  Width between Inner Plates (W) (Min)  Roller Dia (D) (Max)  Bearing Ring Pin Dia (d) (Max)  Plate Height   Plate Thickness  Width Over Joint Bearing Pin (A) (Max) Width Over Joint Fasteners (B) (Max)  Tensile Strength (Kgf) (Min)
 IP (H1) (Max) OP (H2) (Max)   IP (T1) OP (T2)
60H-1 D122 01 19.05 12.58 11.91 5.94 18.00 14.88 3.15 3.15 31.20 35.80 3240
80H-1 D162 01 25.40 15.75 15.88 7.94 24.10 20.80 4.00 4.00 38.00 43.40 5780
100H-1 D202 01 31.75 18.90 19.05 9.54 30.10 26.00 4.70 4.70 45.40 51.50 9030
120H-1 D242 01 38.10 25.22 22.23 11.11 36.20 31.20 5.56 5.56 55.10 61.70 12950
140H-1 D282 01 44.45 25.22 25.40 12.71 42.20 36.40 6.30 6.30 60.40 67.80 17580
160H-1 D322 01 50.80 31.55 28.57 14.29 48.20 41.60 7.14 7.14 70.00 77.90 23120
200H-1 D402 01 63.50 37.85 39.67 19.85 60.30 52.00 8.80 8.80 93.10 103.30 36070
Note : In process of making the product better the actual product may differ in design From the actual displayed product.
