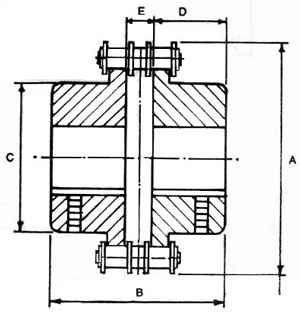

Roller Chain couplingns
Coupling No. Bore DIA
Min      Max
T t W C D Wt.
Kgs.
ATC6112 1016 65 30 5 26 45 0.30
ATC8312 1022 78 36 7 36 0.80
ATC8316 1632 78 36 7 50 78 1.4
ATC1016 1642 96 44 7.9 62 96 2.6
ATC1018 1948 98 45 7.9 71 106 3.5
ATC1218 2260 121 54 8.9 89 126 6.3

Coupling No. Bore DIA
Min      Max
T t W C D Wt.
Kgs.
ATC1222 2576 121 54 8.9 110 151 9.5
ATC1622 3595 150 67 16.2 140 202 20
ATC2020 40110 200 91 18 160 231 34
ATC2418 50119 260 118 24 166 254 51
ATC2422 60150 260 118 24 208 301 64
ATC3218 70160 360 165 30 220 341 110


Coupling
No.
Max
Bore
DIA.
Revolutions per minute
10 25 50 100 200 300 400 500 600 800 1000 1200 1500 1800 2000 2500 3000 3600 4000 4800 5200 6000
ATC 6112 16 0.14 0.35 0.70 1.05 1.6 2.1 2.5 3.0 3.4 4.2 5.2 5.9 7.1 8.3 9.0 10.9 12.6 14.7 16.0 18.8 19.8 22.3
ATC 8312 22 0.31 0.77 1.54 2.31 3.5 4.6 5.5 6.6 7.6 9.4 11.4 13.0 15.6 18.3 19.7 24 28 32 35 41
ATC 8316 32 0.55 1.3 2.7 4.13 6.3 8.2 9.9 11.8 13.5 16.7 20 23 28 32 35 42 49 57 63 73
ATC 1016 42 1.05 2.6 5.2 7.8 11.9 15.7 18.8 22 25 32 38 44 53 62 67 81 94 109
ATC 1018 48 1.3 3.3 6.6 9.9 15.1 19.9 23.9 28 32 40 49 55 67 79 85 103 119
ATC 1218 60 2.5 6.2 12.5 18 28 37.5 45 154 61 76 92 105 127 148 160 194
ATC 1222 76 3.3 8.4 17 25 38 50 60 72 83 102 125 142 172 200 216 261
ATC 1622 95 7.9 20 39 59 90 119 143 171 195 242 294 334 405 472 509
ATC 2020 110 12.5 31 62 94 142 187 225 269 308 380 463 525 638 743
ATC 2418 119 19 47 94 141 214 282 339 405 463 572 696 790 960
ATC 2422 150 24 61 121 182 277 365 438 523 598 740 900 1022
ATC 3218 160 40 101 203 305 463 610 732 874 1000 1237 1504

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
