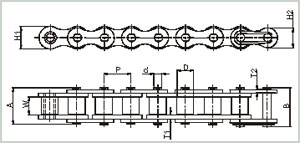

Standard Roller Hi Life American Heavy Series Chain

Single Strand

Intl. Ref No. Diamond Chain No. Pitch (P) Width between Inner Plates (W) (Min)  Roller Dia (D) (Max)  Plate Height Plate Thickness Bearing Ring Pin Dia (d) (Max) Width Over Bearing Pin (A) (Max) Width Over Joint Fasteners(B) (Max) Tensile Strength (Kgf) (Min)
IP (H1) (Max) OP (H2) (Max) IP (T1) OP (T2)
60H-1 D 12201HE01 19.05 12.58 11.91 18.00 14.88 3.15 3.15 5.96 31.20 35.80 4600
80H-1 D 16201HE02 25.40 15.75 15.88 24.10 20.80 4.00 4.00 7.94 38.00 43.40 8700
100H-1 D 20201HE02 31.75 18.90 19.05 30.10 26.00 4.70 4.70 9.54 45.40 51.50 11500
120H-1 D 24201HE02 38.10 25.23 22.23 36.20 31.20 5.56 5.56 11.11 55.10 61.70 16200
160H-1 D 32201HE01 50.80 31.55 28.57 48.20 41.60 7.14 7.14 14.29 70.00 77.90 29000
200H-1 D 40201HE01 63.50 37.85 39.67 60.30 52.00 8.80 8.80 19.85 93.10 103.30 52500
Note : In process of making the product better the actual product may differ in design From the actual displayed product.
