Ball Type Universal Joints
Universal joints are engineered to fill the need for a rugged, compact joint providing for higest load carring capacites and maximum service and safety over long periods of time. Highest quality alloy steels carefully selected by each perticular part, are acurectly machined, heat treated for maximum strength and durability, and precision ground, assuring close fits-PRECISE, COMPACT, STRONG, SMOOTH RUNNING, LONG LIFE.
UNIVERSAL JOINTS are carried off-shelf in pilot bores and sutiable to fit standard shiftings.
MOUNTING INSTRUCTIONS: For most efficient operations it is recommended that these universal joints operate in as near a straight line as possible. They can however operate at angles upto 37 degrees, at slow speeds and light loads.

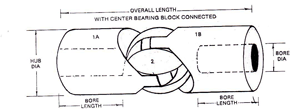

1 A and 1 B - YOKES - Highest quality along steel, heat treated for maximum wear and strength. Yokes can be easly bored or altered. Bearing surface accuratly ground for smooth operation and O.D. ground for true running.
Center Bearing Blocks-Hardened and precision ground for long wear, with recess for self-locking.
S.No. Hub Dia Suitable For Bore Dia Bore Length Overall Length Approx Weight in Lbs Hub Diameter Max Horsepower @.100 Rpm Breaking Load *
AU-1 3/8" 3/16" 43/64" 1 3/4" .05 3/8 1/12 100
AU-2 1/2 1/4 47/64 2 .09 1/2 1/3 400
AU-3 5/8 5/16 51/64 2 1/4 .17 5/8 2/3 830
AU-4 3/4 3/8 61/64 2 11/16 .30 3/4 1 1/4 1600
AU-5 7/8 7/16 1 3/64 3 .45 7/8 1 1/2 1850
AU-6 1 1/2 1 11/64 3 3/8 .67 1 2 1/4 3000
AU-7 1 1/4 5/8 1 15/64 3 3/4 1.15 1 1/4 4 5200
AU-8 1 1/2 3/4 1 11/32 4 1/4 1.85 1 1/2 6 1/2 8400
AU-9 1 3/4 7/8 1 19/32 5 2.90 1 3/4 9 1/2 12,500
AU-10 2 1 1 21/32 5 7/16 4.00 2 16 22,000
AU-11 2 1/2 1 1/4 2 7/32 7 8.00 2 1/2 25 35,000
AU-12 3 1 1/2 2 31/32 9 15.25 3 40 55,000
AU-13 4 2 3 21/64 10 5/8 31.31 4 100 132,000
* Ultimate Breaking Load Static(No Velocity)Torque Inch Lbs
Note : In process of making the product better the actual product may differ in design From the actual displayed product.
