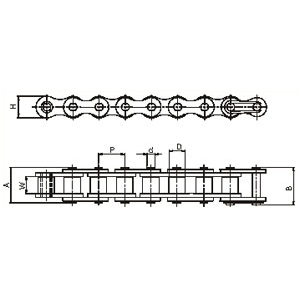

Standard Roller European Series Chain

Single Strand

Intl. Ref. No. Diamond Chain No. Pitch (P) Width Betwwen Inner Plates (W) (Min) Roller Dia (D) (Max) Bearing Pin Dia (D) (Max) Plate Height (H) (Max) Width Over Bearing Pin (A) (Max) Width Over Joint Fastener (B) (Max) Tensile Strength (Kgf) (Min)
04B-1 D04B 01 6.00 2.80 4.00 1.85 5.00 7.40 10.30 300
05B-1 D05B 01 8.00 3.00 5.00 2.31 7.10 8.60 11.70 510
06B-1* D061 01 9.525 5.72 6.35 3.28 8.20 13.50 16.80 920
08B-1 D083 01 12.70 7.75 8.51 4.45 11.80 17.00 20.90 1840
10B-1 D101 01 15.875 9.65 10.16 5.08 14.70 19.60 23.70 2290
12B-1 D120 01 19.05 11.68 12.07 5.72 16.10 22.70 27.30 2960
16B-1 D160 01 25.40 17.02 15.88 8.27 21.00 36.10 41.50 6120
20B-1 D200 01 31.75 19.56 19.05 10.19 26.40 43.20 49.30 9690
24B-1 D240 01 38.10 25.40 25.40 14.63 33.40 53.40 60.00 16310
28B-1 D280 01 44.45 30.99 27.94 15.90 37.00 65.10 72.50 20390
32B-1 D320 01 50.80 30.99 29.21 17.81 42.20 67.40 75.30 25500
40B-1 D400 01 63.50 38.10 39.37 22.89 52.90 82.60 92.60 36200
48B-1 D480 01 76.20 45.72 48.26 29.24 63.80 99.10 109.10 57100
* Straight Side Plates
Note : In process of making the product better the actual product may differ in design From the actual displayed product.
