Self Lube - Plastic Sleeve Chains

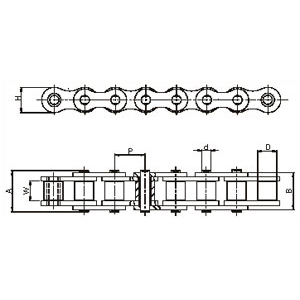

Diamond Chain No. Pitch (P) Width Betwwen Inner Plates (W) (Min) Roller Dia (D) (Max) Plate Width (H) (Max) Bearing Pin Dia (D) (Max) Width Over Bearing Pin (A) (Max Width Over Joint Fastener (B) (Max) Transvers Pitch (P1) Tensile Strength (Kgf) (Min)
E08301ZPB01* 25.40 7.75 8.51 11.80 4.45 17.00 20.90 - TD 1400
D12Y01PB01 19.05 12.57 11.91 18.00 5.94 26.90 31.50 - TD 3180
D12Y02PB01 19.05 12.57 11.91 18.00 5.94 49.70 54.40 22.78 TD 6360

* Double Pitch Zinc Plated Chains

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
