Pin Type Universal Joints

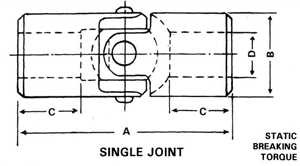

SINGLE JOINT
SERIES NO. B A BORE SIZE C Static Breaking Torque (Nm)
      STANDARD WITHKEY WAY
S J 1 9.5 44 6 -- 13 21
S J 2 13 50 8 -- 15 44
S J 3 16 58 10 7.5 17 75
S J 4 19 64 12 8.5 19 89
S J 5 22.5 76 14 11 21 135
S J 6 25.5 86 16 12 25 193
S J 7 29 90 18 14 26 331
S J 8 32 95 20/22 16 26.5 600
S J 9 38.5 108 25 19 30 910
S J 10 44.5 127 30 22.5 34.5 1230
S J 11 51 140 35 27.5 38 1790
S J 12 57.5 165 40 32 47.5 2860
S J 13 63.5 178 45 36.5 50 3810
S J 14 76.5 222 50 44.5 66 7510
S J 15 89 254 65 53 78.5 11010
S J 16 102 292 70 62 94 15850

ALL DIMENSIONS IN MM                                                                     BORES TO H, LIMITS

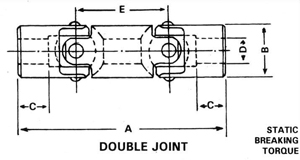

DOUBLE JOINT
SERIES NO. B A BORE SIZE C E Static Breaking Torque (Nm)
      STANDARD WITHKEY WAY
D J 1 13 71.5 8 -- 15  21.5 44
D J 2 16 81 10 7.5 16  25 75
D J 3 19 91 12 8.5 19  27 89
D J 4 22.5 111 14 11 21  35 135
D J 5 25.5 122 16 12 25  36 193
D J 6 29 133 18 14 26  43 331
D J 7 32 143 20/22 16 26.5  48 600
D J 8 38.5 162 25 19 30  54 910
D J 9 44.5 194 30 22.5 34.5  67 1230
D J 10 51 218 35 27.5 38  78 1790
D J 11 57.5 245 40 32 47.5  80 2850
D J 12 63.5 267 45 36.5 50  89 3810
D J 13 76.5 318 50 44.5 56  96 7510
D J 14 89 365 65 53 78  111 11010
D J 15 102 410 70 62 94 118  15850

ALL DIMENSIONS IN MM                                                                     BORES TO H, LIMITS

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
